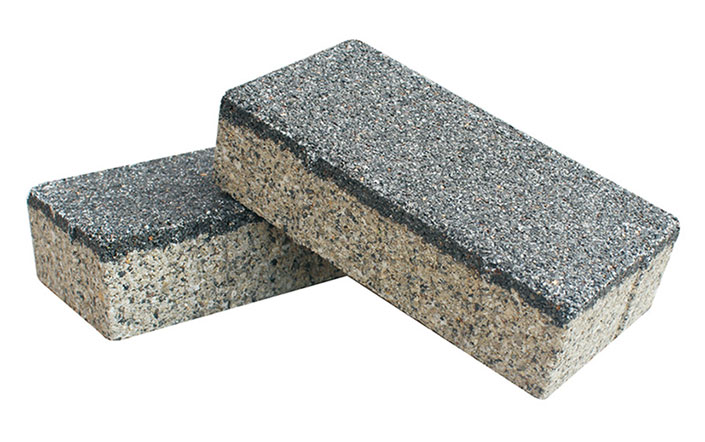

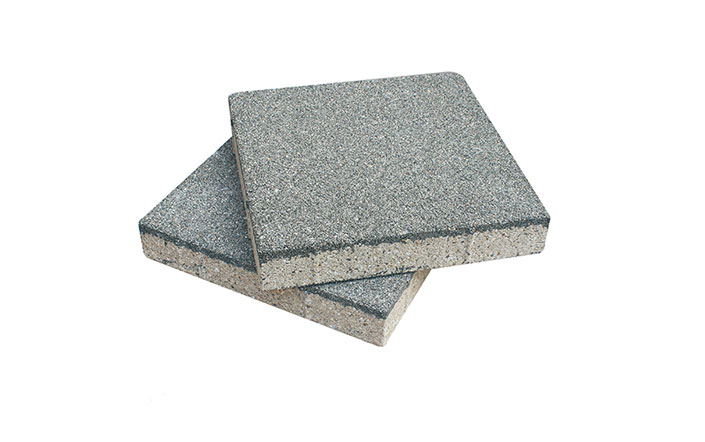

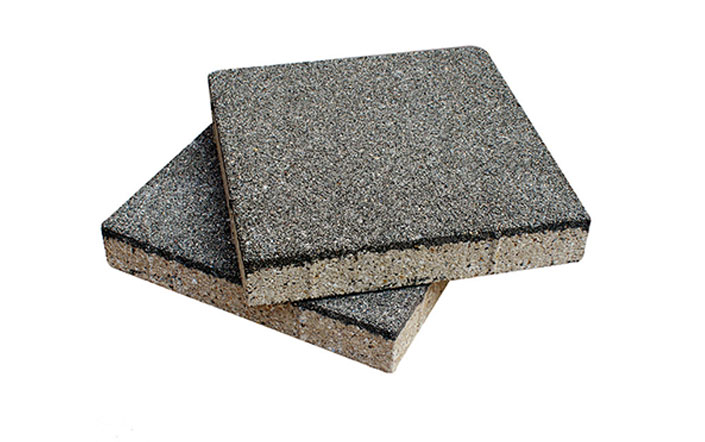

Ceramic permeable brick
White series-
Terracotta panel
Black series
Jinjiu ceramic permeable brick has good permeability, can penetrate rainwater quickly and easily cope with the rainfall of 60mm/h.
-
1
-
2
-
3
- Specifications&Color
- parameters

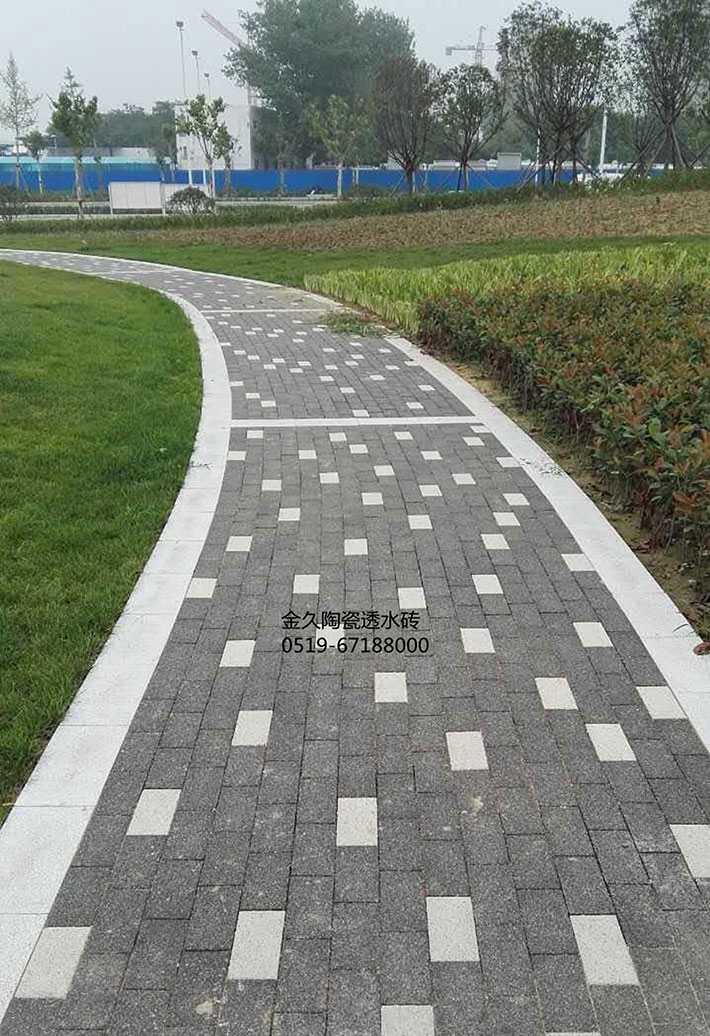

- Cases
regular size(mm) | monolithic weight（kg) | single chip(㎡） | number of pieces/㎡ | weight/㎡（kg) | ||
600*300*55 | 17.84 | 0.18 | 5.56 | 99.11 | ||
300*300*55 | 8.92 | 0.09 | 11.11 | |||
300*150*55 | 4.46 | 0.045 | 22.22 | |||
200*200*55 | 3.96 | 0.04 | 25.00 | |||
200*400*55 | 7.92 | 0.08 | 12.50 | |||
200*100*55 | 1.98 | 0.02 | 50.00 | |||
thickness optional:30mm、40mm、50mm、60mm
test items | standard values | detection value | |
compressive strength | ≥35 | ≥50 | |
flexural strength | ≥3.5 | ≥6.0 | |
permeability coefficient | ≥2.0×10-2 | ≥3.0×10-2 | |
frost resistance | freeze cycle 25 times in summer and cold winter | single block mass deletion rate≤20% | maximum1.0 |
strength loss rate≤20% | 12 | ||
wear-resisting degree | milling pit length≤35 | 28 | |
skid resistance | ≥60 | 70 | |
